- NP-2017 Strap cutting machine (Slitter machine )

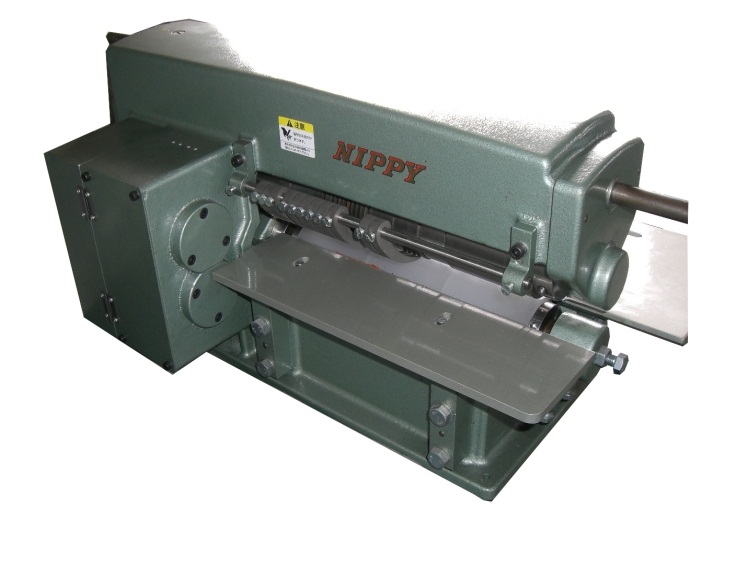

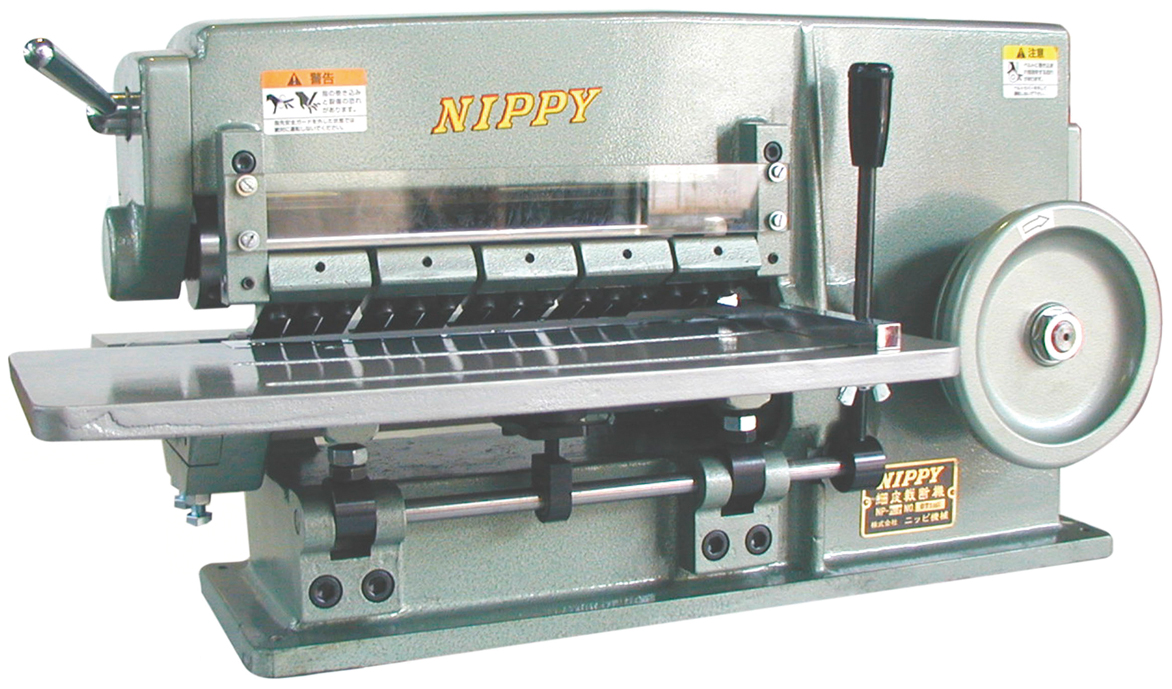

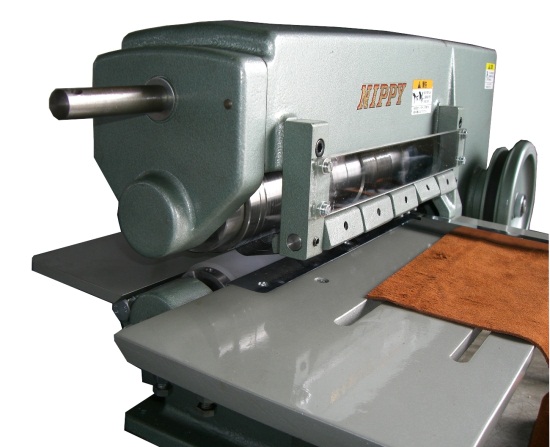

NP-2017 Strap cutting machine (Slitter machine )
| Product No | NP-2017 |
|---|---|
| Model name |
NP-2017 Strap cutting machine (Slitter machine ) |
Machinical explanation
Working width is 250mm for cutting.
Machinical feature
①Possible to change rim speed ratio of roller depends on materials.
②Possible to cut halfway materials or endless materials.
③Move the lower roller right and left together with abrasion of it.
Max cutting width: standard 5mm (Max: 15mm)
Cutting numbers of sheets : 10straps
Specification
| Max machine width | 250mm |
|---|---|
| Max cutting width | 5mm standard （MAX15mm） |
| Cutting numbers of sheets | 10 pcs |
| rim speed ration of knife / lower roller | 1：1, 2：1, 3：1, 4：1 |
| Machine size | 390 L (mm) x 625 W (mm) x 330 H (mm) |
| Packing size | 400 L (mm) x 850 W (mm) x 455 H (mm) |
| Weight | 800 kg |
| Remarks | *Necessary to arrange a table, stand and clucth motor. |
|---|
